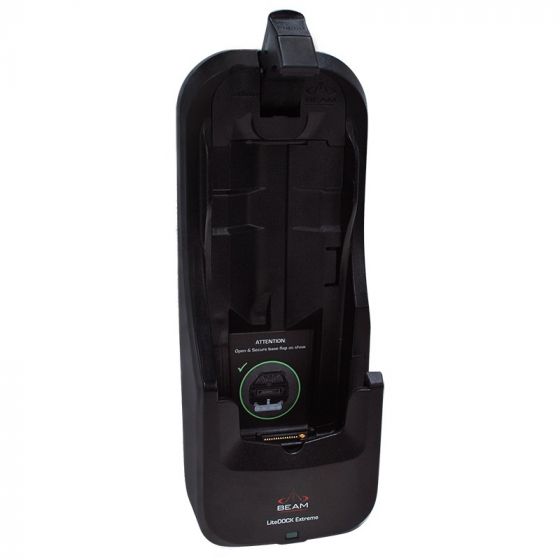

The Beam LiteDOCK Extreme, an Iridium 9575 dock, is an entry-level docking station for the Iridium 9575 handset that can be used in various maritime, transport or fixed site applications.
The Iridium Extreme handset fits securely in the docking station with an easy click to lock mechanism that can be inserted and removed with a press of a button. It is purposely built to allow you to utilize the SOS emergency, with an inbuilt GPS coupling capability that allows you to connect an external GPS antenna to the dock. The Dock also allows you to use the side portable handsfree jack for voice calls (requires the customer to use a corded ear piece that comes packaged with Iridium 9575 Handsets).
The Beam LiteDOCK Extreme features USB data port, phone charging, an integrated Iridium and GPS antenna, making it possible to keep all antenna cables and power permanently connected to the docking station, ready for use.
This dock is designed to be "extremely" low cost. The LiteDOCK holds the Iridium 9575 Extreme satellite phone, comes complete with RAM mount for easy fitting and is designed to use the standard Extreme handset accessories for charging and calls via the hands free headset. The dock also allows easy access to the emergency button and via the Iridium and GPS antenna connections, can provide very good indoor coverage. The dock also includes a inbuilt GPS coupling antenna to support an external GPS antenna. So all the Extreme GPS tracking and emergency alerts are fully supported in the LiteDOCK.
| PRODUCT TYPE | SATELLITE PHONE |
|---|---|
| USE TYPE | FIXED, MARITIME, VEHICULAR |
| MODEL | LITEDOCK EXTREME |
| PART # | EXTRMLD |
| NETWORK | IRIDIUM |
| FEATURES | IRIDIUM CERTIFIED |
| HEIGHT | 212 mm (8,35 pouces) |
| WIDTH | 82.2 mm (3.24 inches) |
| WEIGHT | 0,375 kg (0,83 livre) |
| FREQUENCY | L BAND (1-2 GHz) |
| COMPATIBLE WITH | IRIDIUM 9575 EXTREME |
| OPERATING TEMPERATURE | -30°C to 70°C (-22°F to 158°F) |
| CERTIFICATIONS | IRIDIUM CERTIFIED, EMC COMPLIANCE, CE COMPLIANCE, RoHS, ELECTRICAL SAFETY, C-TICK |
