The rugged and lightweight Hughes 9211 is a budget-friendly High Data Rate terminal, ideal for media, governments, NGOs, mobile healthcare providers and more.

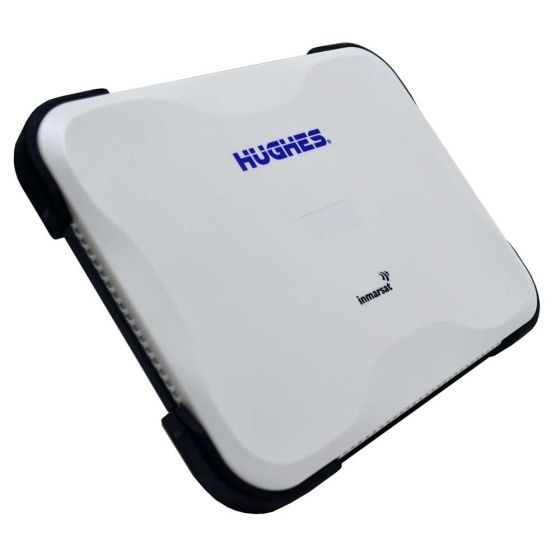

Hughes 9211 BGAN HDR Land Portable Satellite Internet Terminal w/ WiFi
The rugged and lightweight Hughes 9211-HDR is a budget-friendly High Data Rate terminal, ideal for media, governments, NGOs, mobile healthcare providers and more, who demand the finest balance of high performance, quality of service and lowest cost.
The 9211-HDR boasts a hardened, compact, and sleek design?the world?s smallest and lightest HDR-capable BGAN. Users can connect at streaming broadband speeds of over 650 kbps with features such as built-in, multi-user WiFi access.
An external powered antenna is available to support long RF cable runs for temporary or permanent fixed-site installations. The user even has the freedom to connect an accessory vehicular tracking antenna, enabling comms-on-the-move directly from the 9211-HDR terminal.
The Hughes 9211-HDR enables users to send and receive IP traffic via Ethernet and/or 802.11 b/g/n WiFi and voice or fax via a standard telephone connection. It is all IP-based and offers Class 1 background IP or selectable, dedicated Quality of Service (QoS) levels.
Inmarsat's BGAN HDR service network now offers new and higher streaming rates. The Hughes 9211-HDR supports the highest streaming rates available (above 650 kbps) for transmitting video and other critical data from the field. Asymmetric streaming rates are supported, enabling users to better tailor the service to their individual preferences to control and minimize costs.
Interfaces
Ethernet connection (RJ45)
POTS connection for voice and fax (RJ11)
External antenna connector
Compass and audio tone to assist in antenna pointing
| PRODUCT TYPE | SATELLITE INTERNET |
|---|---|
| USE TYPE | FIXED, PORTABLE |
| BRAND | HUGHES |
| MODEL | 9211 BGAN HDR |
| PART # | 3500841-0002 |
| NETWORK | INMARSAT |
| CONSTELLATION | 3 SATELLITES |
| USAGE AREA | GLOBAL (EXCEPT POLAR REGIONS) |
| SERVICE | INMARSAT BGAN HDR |
| FEATURES | INTERNET |
| DATA SPEED | UP TO 492 kbps (SEND / RECEIVE) |
| STREAMING IP | 32 kbps, 64 kbps, 128 kbps, BGAN X-STREAM |
| LENGTH | 232 mm |
| WIDTH | 292 mm |
| DEPTH | 51 mm |
| WEIGHT | 2.019 kg |
| FREQUENCY | L BAND (1-2 GHz) |
| INGRESS PROTECTION | IP 65 |
| STANDBY TIME | UP TO 36 HOURS |
| ACCESSORY TYPE | TERMINAL |
| OTHER DATA INTERFACES | ETHERNET, WI-FI |
| OPERATING TEMPERATURE | -5°C to 55°C (23°F - 131°F) |
| STORAGE TEMPERATURE | -25°C to 55°C |
Package Contents:
- Hughes 9211-HDR Terminal
- Rechargeable lithium ion battery pack
- 5m Ethernet cable
- AC/DC adaptor, three IEC cables, one each for UK, EU, and US connections
