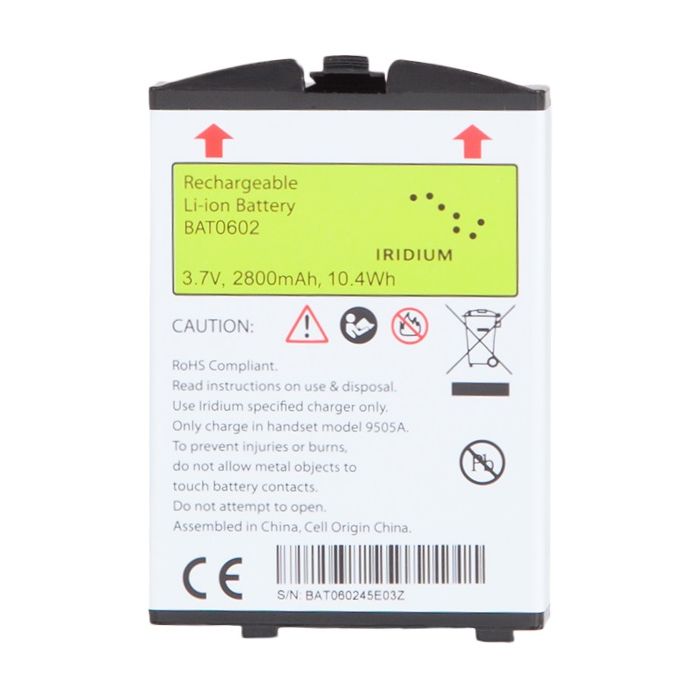

This battery may be used with the Iridium 9505A portable satellite phone and installed by removing the 9505A battery door and replacing the existing 9505A battery.
Battery charge time to 90% capacity is 3 hours when charged in an Iridium 9505A handset at 25?C (77?F) with a compatible charger. For optimum performance, only charge your battery at temperatures between 0?C (32?F) and 40?C (104?F). Fast charge will be complete in about 3 hours 15 minutes.
This model replaces the previous version, BAT0602,
Specifications
2800 mAh 3.7 V Lithium Ion
Talk time: 3.2 hours
Standby time: 30 hours
Weight: 65 g (2.3 oz)
| PRODUCT TYPE | SATELLITE PHONE |
|---|---|
| BRAND | IRIDIUM |
| MODEL | 9505A BATTERY |
| PART # | BAT1601 |
| NETWORK | IRIDIUM |
| FREQUENCY | L BAND (1-2 GHz) |
| UPC | BAT0602 |
| ACCESSORY TYPE | BATTERY |
| COMPATIBLE WITH | IRIDIUM 9505A |
