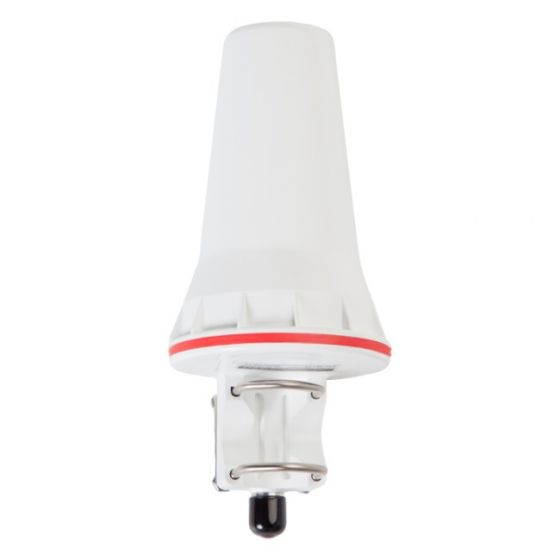

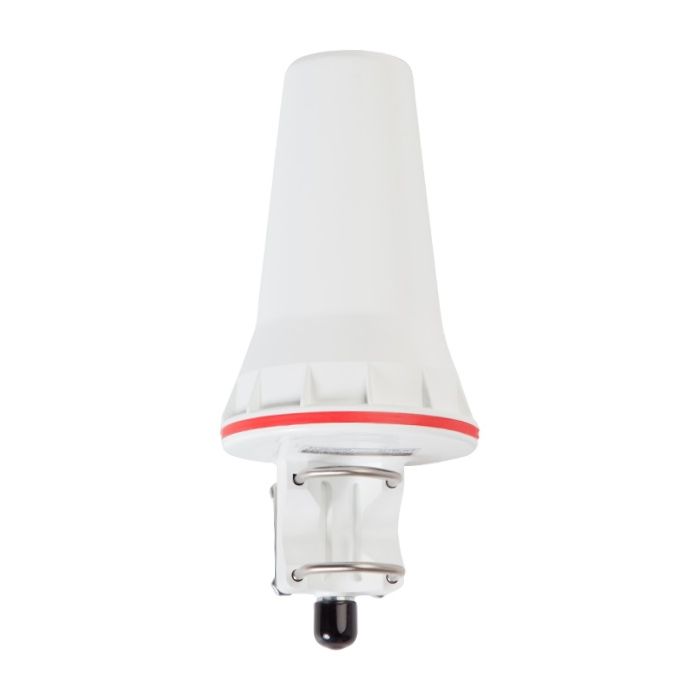

Iridium AeroAntenna Fixed Mast Antenna - Bracket Mount (AT1621-73)
AeroAntenna Fixed Mast Antenna, for use with the Iridium 9500, 9505 or 9505A satellite phones and 9570 portable dock, delivers exceptional reception performance for permanent in-building or marine applications. It is designed for free-air operation. (No ground plane.) The AT1621-73 fixed mast Iridium accessory pole mount antenna is for use with Iridium and Motorola satellite phones and various fixed site portable docking station systems.
| PRODUCT TYPE | SATELLITE PHONE |
|---|---|
| USE TYPE | FIXED, MARITIME |
| BRAND | AEROANTENNA |
| PART # | AT1621-73 |
| NETWORK | IRIDIUM |
| USAGE AREA | 100% GLOBAL |
| SERVICE | IRIDIUM VOICE |
| FEATURES | PASSIVE |
| HEIGHT | 18,5 cm (7,3 busto) |
| DIAMETER | 8.3 cm (3.25 inches) |
| WEIGHT | 226,79 gramas |
| FREQUENCY | L BAND (1-2 GHz) |
| ACCESSORY TYPE | ANTENNA |
| COMPATIBLE WITH | IRIDIUM 9575 EXTREME, IRIDIUM PTT, IRIDIUM 9555, IRIDIUM 9505A, IRIDIUM 9505, IRIDIUM GO! |
| OPERATING TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
