Intellian t130N Global Marine Satellite TV Antenna System w/ 125cm (49.2") Dish In V130nx Matching Radome (T4-131BW3)

38 876,59 C$ 31 677,33 C$
BRAND:
INTELLIAN
MODEL:
t130N
PART #:
T4-131BW3
ORIGIN:
Corée du Sud
WARRANTY:
3 YEARS PARTS 2 YEAR LABOR
État du stock:
En stock
AVAILABILITY:
ALLOW 6-8 WEEKS FOR DELIVERY
Product Code:
Intellian-T4-131BW3

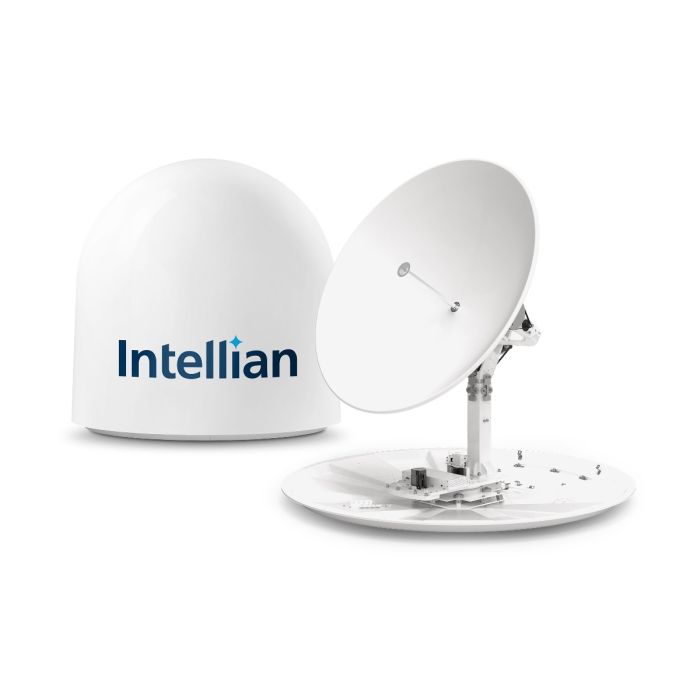

Intellian t130N Global Marine Satellite TV Antenna System w/ 125cm (49.2") Dish In V130nx Matching Radome (T4-131BW3)
The t130N provides outstanding performance with a 1.25m reflector with the added benefits of all new hardware and pedestal based on our quality-proven VSAT NX terminals. Modular components are used throughout the new t-Series range, such as the main control unit and skew assembly. Sharing common modules across Intellian’s new t-Series antenna reduces the number of spare parts required.


Television everywhere
WorldView™ LNB module will automatically switch to the corresponding Ku-band local frequency and receive the signal without the need to switch the LNB.

Wi-Fi connectivity
The Wi-Fi function enables the ACU to be wirelessly connected. Any kind of wireless devices such as PCs, laptops and smartphones can be used to connect to the ACU to manage and control the antenna system.

Unlimited azimuth range
With Intellian’s unique rotary joint and slip ring solution, those onboard will enjoy uninterrupted TV services no matter the number of turns the vessel makes.

New AptusNTV
Intellian's all new integrated M&C platform AptusNTV provides responsive web user interface.  The simple seven-step installationwizard function configures the antenna system automatically for easier installation and operation.

Fully integrated solution
- With its Wi-Fi enabled ACU, users can connect wirelessly to the antenna using AptusNTV.
- AptusNTV offers users instant diagnostics, performance logging functions, and one touch updates of firmware and the satellite library
- Programmable WorldView™ Ku-band LNB
- DVB-S2 Digital TV receptions

All new hardware structure
- Modular components are used throughout the new t-Series range
- Five cable configuration for easy installation
- Unlimited azimuth range, eliminates the need to wait for the antenna to unwrap the cable length once reached.
- Dual functionality via external Mediator

Plus d’information
TYPE DE PRODUITTÉLÉVISION PAR SATELLITE
TYPE D'UTILISATIONMARIN
MARQUEINTELLIAN
MODÈLEt130N
PIÈCE NO.T4-131BW3
ZONE D’UTILISATION100% GLOBAL
POIDS129.0kg / 284.4 lbs
FRÉQUENCEBande Ku
RECEPTION FREQUENCYKu-band: 10.7 ~ 12.75 GHz
RADOME DIAMETER125 cm (49.2 inch)
POLARIZATIONCIRCULAR AND LINEAR
AZIMUTH RANGEUnlimited

System Features
• 5 cable configuration
• All New hardware structure
• Pre-programmable WorldView Ku-band LNB
• Unlimited azimuth range
• DVB-S2 Digital TV receptions
• Wi-Fi connectivity enable
• User-friendly SW platform for antenna M&C
• Matching dome solution
• Dual setup via external Mediator

Intellian T130n 1.25M Maritime Global Satellite Tv Antenna System In V130nx Matching Radome (T4-131BW3)
BROCHURES
pdf
 (Taille: 443.4 KB)
