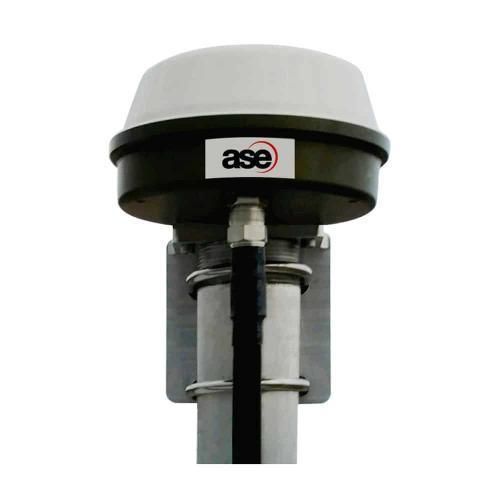

Iridium Filtered Passive Antenna N-Type with Mounting Brackets (AD512)
Provides superior performance with all the Iridium series satellite phones for external mounting in harsh or marine environments. The radomes are 4 mm GRP/polyester mix whilst the base is milled from hard anodised aluminium, giving an attractive green finish, which is mechanically resilient and resistant to corrosion.
The bracket provided with each antenna can be attached to vertical or horizontal spars, up to 60 mm in diameter, using the U bolts provided. Connection to the Iridium handset is made with an appropriate coaxial cable via a TNC/N type on the underside of the antenna.
Passive Antenna utilises the Iridium satellite network.
| TYPE DE PRODUIT | TÉLÉPHONE SATELLITE |
|---|---|
| TYPE D'UTILISATION | FIXÉ, MARIN |
| PIÈCE NO. | AD512 |
| RÉSEAU | IRIDIUM |
| ZONE D’UTILISATION | 100% GLOBAL |
| SERVICE | IRIDIUM VOICE |
| CARACTÉRISTIQUES | PASSIVE |
| FRÉQUENCE | Bande L |
| TYPE D'ACCESSOIRE | ANTENNE |
| COMPATIBLE AVEC | IRIDIUM 9575 EXTREME, IRIDIUM PTT, IRIDIUM 9555, IRIDIUM 9505A, IRIDIUM 9505, IRIDIUM 9500 |
